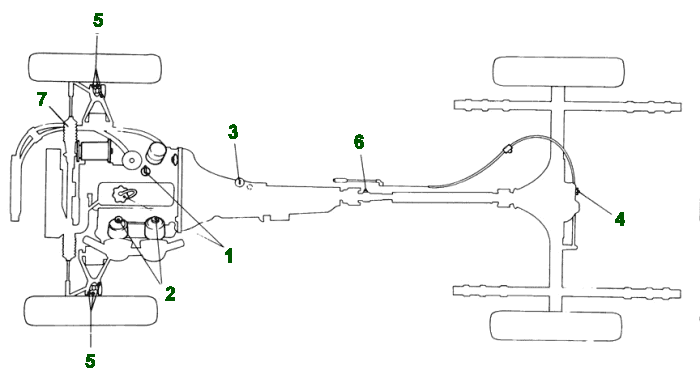

Recommended Lubricants and Fluids
|
|
Component or system
|
Lubricant type or specification
|
Castrol product
|
1.
|
Engine
|
SAE 20W/50 mutligrade engine oil
|
GTX
|
2.
|
Carburettor piston dampers
|
SAE 20W/50 mutligrade engine oil
|
GTX
|
3.
|
Gearbox and overdrive
|
SAE 20W/50 mutligrade engine oil
|
GTX
|
|
Automatic transmission
|
Automatic transmission fluid type F
|
TQF
|
4.
|
Rear axle
|
SAE 90EP Hypoid
|
Hypoy B90
|
5.
|
Front suspension
|
Multi-purpose grease
|
LM grease
|
6.
|
Front suspension
|
Propeller shaft
|
LM grease
|
|
Water pump (early cars only)
|
Multi-purpose grease
|
LM grease
|
|
Distributor, linkages, cables,
dynamo bearing, locks and hinges
|
SAE 20W/50 mutligrade engine oil
|
GTX
|
|
Hydraulic systems
|
Hydraulic fluid to SAE J1703
|
Universal brake and clutch fluid
|
7.
|
Steering rack
|
SAE 90EP Hypoid
|
Hypoy B90
|
|
Torque Wrench Settings
|
|
lbf ft
|
kgf m
|
Engine
|
Main bearing nuts
|
70
|
|
|
9.7
|
|
|
Flywheel set screws
|
40
|
|
|
5.5
|
|
|
Gudgeon pin clamp bolt
|
25
|
|
|
3.4
|
|
|
Big end bolts
|
35
|
-
|
40
|
4.8
|
-
|
5.5
|
Big end nuts (12 sided, 18V)
|
33
|
|
|
4.5
|
|
|
Cylinder head nuts
|
45
|
-
|
50
|
6.2
|
-
|
6.9
|
Rocker bracket nuts
|
25
|
|
|
3.4
|
|
|
Spark plugs
|
18
|
|
|
2.5
|
|
|
Oil pump to crankcase
|
14
|
|
|
1.9
|
|
|
Oil pump banjo
|
37
|
|
|
5.1 max
|
|
|
Oil release valve - dome nut
|
43
|
|
|
5.9
|
|
|
Sump to crankcase
|
6
|
|
|
0.8
|
|
|
Cylinder side cover screws
|
2
|
|
|
0.28
|
|
|
Second type-deep pressed cover
|
5
|
|
|
0.7
|
|
|
Crankshaft pulley nut
|
70
|
|
|
9.6
|
|
|
Camshaft nut
|
65
|
|
|
8.9
|
|
|
Timing cover - 0.25 in screws
|
6
|
|
|
0.8
|
|
|
Timing cover - 0.31 in screws
|
14
|
|
|
1.9
|
|
|
Front plate - 0.31 in screws
|
20
|
|
|
2.8
|
|
|
Rear plate - 0.31 in screws
|
20
|
|
|
2.8
|
|
|
Rear plate - 0.31 in screws (18V)
|
30
|
|
|
4.1
|
|
|
Rear plate - 0.375 in screws
|
30
|
|
|
4.1
|
|
|
Water pump to crankcase
|
17
|
|
|
2.4
|
|
|
Water outlet elbow nuts
|
8
|
|
|
1.1
|
|
|
Rocker cover nuts
|
4
|
|
|
0.56
|
|
|
Manifold nuts
|
15
|
|
|
2.1
|
|
|
Oil filter center bolt
|
15
|
|
|
2.1
|
|
|
Clutch to flywheel bolts
|
25
|
-
|
30
|
3.4
|
-
|
4.1
|
Carburettor stud nuts
|
2
|
|
|
0.28
|
|
|
Carburettor stud nuts (18V)
|
15
|
|
|
2.1
|
|
|
Distributor clamp bolt (nut trapped)
|
4.16
|
|
|
0.57
|
|
|
Distributor clamp bolt (bolt trapped)
|
2.5
|
|
|
0.35
|
|
|
|
Automatic Gearbox
|
Coverter to drive plate bolts
|
25
|
-
|
30
|
3.46
|
-
|
4.15
|
Transmission case to converter housing bolts
|
8
|
-
|
13
|
1.1
|
-
|
1.8
|
Extension housing to transmission case bolts
|
8
|
-
|
13
|
1.1
|
-
|
1.8
|
Oil pan to gearbox bolts
|
8
|
-
|
13
|
1.1
|
-
|
1.8
|
Drain plug
|
8
|
-
|
10
|
1.1
|
-
|
1.38
|
Starter inhibitor switch locknut
|
4
|
-
|
6
|
0.55
|
-
|
0.83
|
Downshift cable adaptor bolts
|
8
|
-
|
9
|
1.1
|
-
|
1.24
|
Filler tube connector sleeve to transmission case
|
20
|
-
|
30
|
2.76
|
-
|
4.15
|
Filler tube to connector sleeve nut
|
17
|
-
|
18
|
2.35
|
-
|
2.49
|
Stone guard screws
|
1.42
|
-
|
1.58
|
0.196
|
-
|
0.219
|
Driving flange nut
|
55
|
-
|
60
|
7.6
|
-
|
8.3
|
Centre support bolts
|
10
|
-
|
18
|
1.38
|
-
|
2.49
|
|
Rear Axle
|
Three-Quarter Floating
|
Crown wheel to differential carrier
|
55
|
-
|
60
|
7.6
|
-
|
8.3
|
Differential bearing cap
|
60
|
-
|
65
|
8.3
|
-
|
8.9
|
Pinion bearing nut
|
135
|
-
|
140
|
18.6
|
-
|
19.3
|
Bearing retaining nut
|
180
|
|
|
24.8
|
|
|
Semi-Floating
|
Halfshaft nut
|
150
|
|
|
20.75
|
|
|
Differential bearing cap bolts
|
50
|
-
|
55
|
6.9
|
-
|
7.6
|
Crwon wheel bolts
|
60
|
-
|
65
|
8.3
|
-
|
8.9
|
Pinion nut, new spacer only
|
180
|
-
|
220
|
28.89
|
-
|
30.42
|
|
Rear Suspension
|
Rear shock absorber bolts
|
55
|
-
|
60
|
7.6
|
-
|
8.3
|
|
Front Suspension
|
Front shock absorber bolts
|
43
|
-
|
45
|
5.9
|
-
|
6.2
|
Brake disc to hub
|
40
|
-
|
45
|
5.5
|
-
|
6.2
|
Brake caliper mounting
|
40
|
-
|
45
|
5.5
|
-
|
6.2
|
Bearing retaining nut
|
40
|
-
|
70
|
5.5
|
-
|
9.7
|
Crossmember to body
|
54
|
-
|
56
|
7.5
|
-
|
7.7
|
|
Steering
|
Steering arm bolts
|
60
|
-
|
65
|
8.3
|
-
|
8.9
|
Steering wheel nut 9/16 in UNF
|
27
|
-
|
29
|
3.73
|
-
|
4.01
|
Steering wheel nut 11/16 in UNF
|
41
|
-
|
43
|
5.66
|
-
|
5.94
|
Steering wheel nut (export)
|
36
|
-
|
38
|
4.98
|
-
|
5.26
|
Steering tie rod locknut
|
33.3
|
-
|
37.5
|
4.6
|
-
|
5.2
|
Steering lever ball joint nut
|
34
|
-
|
35
|
4.7
|
-
|
4.8
|
Steering column universal joint bolt
|
20
|
-
|
22
|
2.8
|
-
|
3.0
|
|
General
|
Stiff-nut to crossmember mounting bolt
|
44
|
-
|
46
|
6.08
|
-
|
6.36
|
Gearbox remote control cover to tunnel
|
7.5
|
-
|
9.5
|
1.04
|
-
|
1.31
|
Alternator shaft nut
|
25
|
-
|
30
|
3.46
|
-
|
4.15
|
Master cylinder port adaptors
|
33
|
|
|
4.56
|
|
|
Master cylinder reservoir fixing bolts
|
5
|
|
|
0.69
|
|
|
Road wheel nuts
|
60
|
-
|
65
|
8.3
|
-
|
9.0
|
|
